DC Photo-voltaic (PV)

DC Photo-voltaic (PV)

Combined Type 2 and 3 tested protector (to BS EN 61643) for use on DC systems to protect connected electronic equipment from transient overvoltages on the mains supply, e.g. control equipment. Available for 12, 24, 36 and 48 V DC systems. For use at boundaries LPZ 1 through to LPZ 3 to protect sensitive electronic equipment.

Application Use on DC power distribution systems to protect connected electronic equipment from transient overvoltages on the DC supply, e.g. DC fed communications or control equipment.

Temperature Range: -40°C to + 80°C
Connection Type: Screw Terminal
Conductor Size (stranded): 16mm²
Earth Connection: Screw Terminal
Case Material: IP20
See Downloads Tab for full Datasheet, Fitting Instructions and DofC

Swipe table
ESPDC550/12.5/PV 5415022011234 1+2 550V 550V 2kV 76mm 76mm 305mm WBXD4 Call Call Contact Us

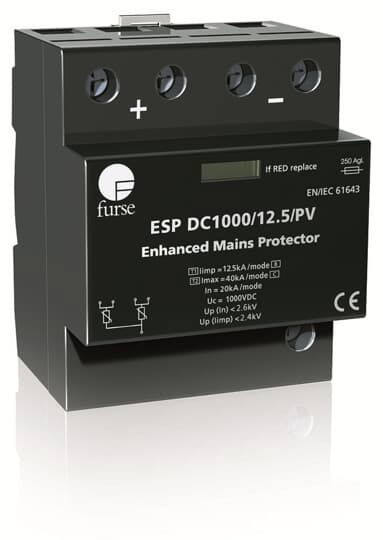

ESPDC1000/12.5/PV 5415022011241 1+2 1000V 1000V 2.6kV 110mm 76mm 80mm WBXD4 £279.00 £334.80
