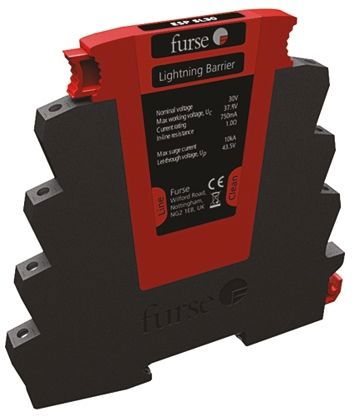

Twisted Pair Data Comms, Signal & Telecom Lines (Slimline)

Twisted Pair Data Comms, Signal & Telecom Lines (Slimline)

Combined Category D, C, B tested protector (to BS EN 61643) suitable for twisted pair signalling applications which require either a lower in-line resistance, an increased current and/or higher bandwidth. Also suitable for DC power applications less than 0.75 Amps. Available for working voltages of up to 6, 15, 30, 50, 110 and 180 Volts. For use at boundaries up to LPZ 0 to protect against flashover (typically the service entrance location) through to LPZ 3 to protect sensitive electronic equipment.

Application Use these protectors where installation space is at a premium and large numbers of lines require protection (e.g. process control, high speed digital communication equipment or systems with long signal lines).

Temperature Range: -40°C to + 80°C

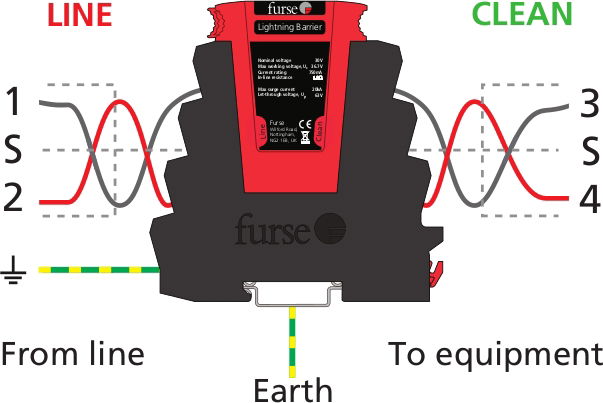

Connection Type: Screw Terminal
Conductor Size (stranded): 4mm²
Earth Connection: Via DIN rail or 4mm² earth terminal
Case Material: FR Polymer UL-94 V-0
See Downloads Tab for full Datasheet, Fitting Instructions and DofC

Swipe table
ESPSL06 5415022045475 D,C,B 3 6V 750mA 106.5mm 104.6mm 7mm - £99.00 £118.80
ESPSL15 5414363612537 D,C,B 3 15V 750mA 106.5mm 104.6mm 7mm - £99.00 £118.80
ESPSL15/I 5415022309461 D,C,B 4 15V 750mA 106.5mm 104.6mm 7mm - £99.00 £118.80
ESPSL30 5414363612551 D,C,B 3 30V 750mA 106.5mm 104.6mm 7mm - £99.00 £118.80
ESPSL30L/I 5415022100211 D,C,B 4 30V 750mA 106.5mm 104.6mm 7mm - £99.00 £118.80
