Computer Networks up to Cat-6 Cabling & POE

Computer Networks up to Cat-6 Cabling & POE

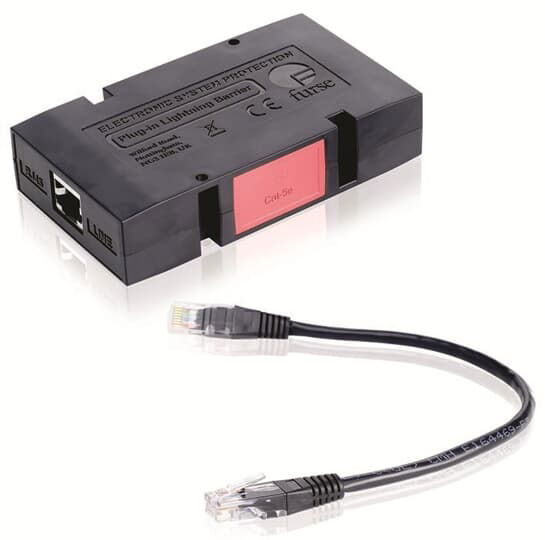

Combined Category D, C, B tested protector (to BS EN 61643) suitable to protect twisted pair Ethernet networks, including Power over Ethernet (PoE), with RJ45 connections. For use at boundaries up to LPZ 0 to protect against flashover (typically the service entrance location) through to LPZ 3 to protect sensitive electronic equipment.

Application Use these protectors on network cables that travel between buildings to prevent damage to equipment, e.g. computers, servers, repeaters and hubs. Suitable for computer networks up to Cat-6A cabling.
– To protect up to 100baseT networks with Cat-5/Cat-5e cabling use ESP Cat-5e
– To protect up to 1000baseT/ 10GbaseT networks with Cat-6/Cat-6A cabling use ESP Cat-6

Temperature Range: -40°C to + 80°C
Connection Type: RJ45 sockets
Cable (supplied): 0.5m Cat-6 shielded patch lead
Earth Connection: M4/DIN rail
Case Material: IP20
See Downloads Tab for full Datasheet, Fitting Instructions and DofC

Swipe table
ESPCAT-6 5415022134377 D,C,B 1 5V 300mA 240mm 60mm 106mm - Call Call Contact Us
ESPCAT-6/POE 5415022134339 D,C,B 8 58V 600mA 240mm 60mm 106mm - Call Call Contact Us
